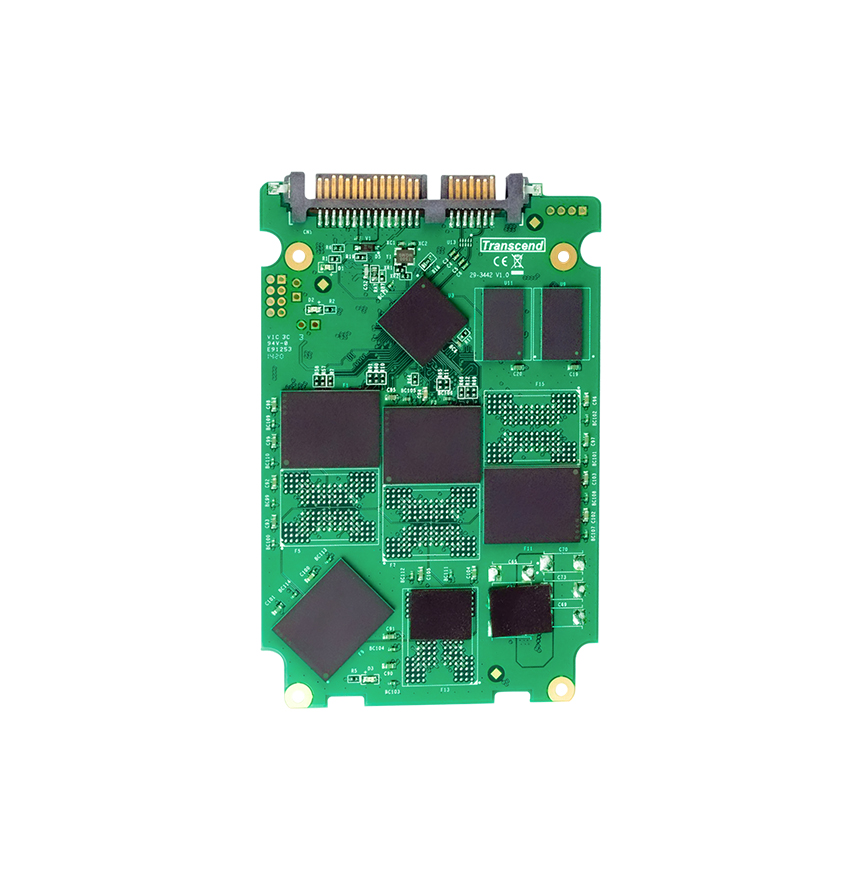

Type FD200S Series
Interface SATA III
Storage Medium TLC
Weight <80g
Capacity 512GB~4TB
Specifications 100.2*69.85*7mm
Voltage 5V±5%
Power 4W MAX
Maximum Read Speed Up to 550MB/s
Maximum Write Speed Up to 530MB/s
Operating Temperature 0～+70℃
Product Overview SATAIII protocol controller with high speed and stability; Support external SDRAM cache, more stable transmission speed; 3D NAND Flash, high performance, fast startup speed; Built-in no mechanical par
Detail

· It conforms to gJB150.16A-2009 vibration measurement standard

· Conform to GJB1032-1990 environmental stress test standard for electronic products

· Supports Trim and NCQ

· Supports dynamic and static garbage collection

· Support SATAIII (6Gbps) high-speed transmission, compatible with SATA ⅱ / ⅰ downward

· LDPC intelligent error correction /S.M.A.R.T instruction /SLC virtual cache algorithm is supported
